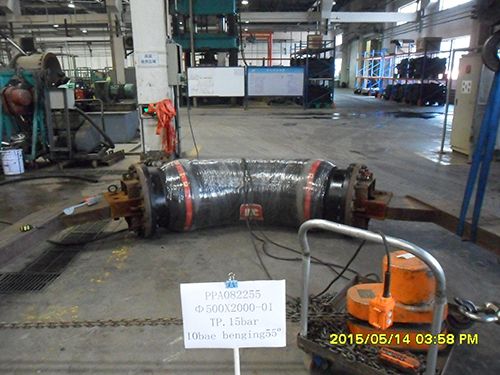

Flexible Dredging Suction Rubber Hose

Flexible Dredging Suction Rubber Hose Specifications:
Suction hose (with steel flange) is assembled with dredgers to deliver silt and gravels. Wall thickness of the pipe is from 31MM to 58MM. The suitable working temperature is from -20°C to 50°C. It is convenient to install, flexible to use, safe, wearing-resistant and bending-resistant.


Flexible Dredging Suction Rubber Hose Structure:
1. The inner rubber liner is composed of wear-proof natural rubber and synthetic rubber
2. The reinforcement layer is composed of high strength rubber dipped chemical fiber and reinforced by spiral metal wire.
3. The rubber cover is composed of natural rubber and synthetic rubber.
4. The surface of the hose takes the shape of corrugated


Flexible Dredging Suction Rubber Hose Features:
● Excellent flexibility and stability.
● Resistant to ozone, weather, corrosion and aging.
● Resistant to sand, slurry, seawater, wave and silt.
● Easy to install, maintain and remove.
● Long service life.
● Resistant to abrasion and kink.
● The color, sizes, thickness, pressure and length all can be customized.
● And we can provide the fittings fit for the hose.


Flexible Dredging Suction Rubber Hose Applications:
1. Used for mud piping of dredge.
2. Widely used for sucking or discharging of mud,water, oil, air, and Powered in Industry, agriculture, factory, mining and building etc.


Flexible Dredging Suction Rubber Hose Advantages:
1.Long lifespan,more than 50 years under normal condition.
2.Good corrosion resistance.
3.Good crack growth resistance.
4.Little coefficient of friction and low flow resistance.
5.Excellent wear resistence, its wear restistance is 4 times higher than steel pipes under normal conditons.
6.Good solder ability,its interface strength is higher than the pipe body.
7.Good flexibility and anti-scratch ability.
8.Very high impact resistance.
9. The unique resistance to low temperature, workable at temperature - 40-60 ° c.
10. Light weight, 1/8 weight of steel pipe, easy for transportation and installation.
11. Flexible metal flange for connection, easy for installation and disassembly.
